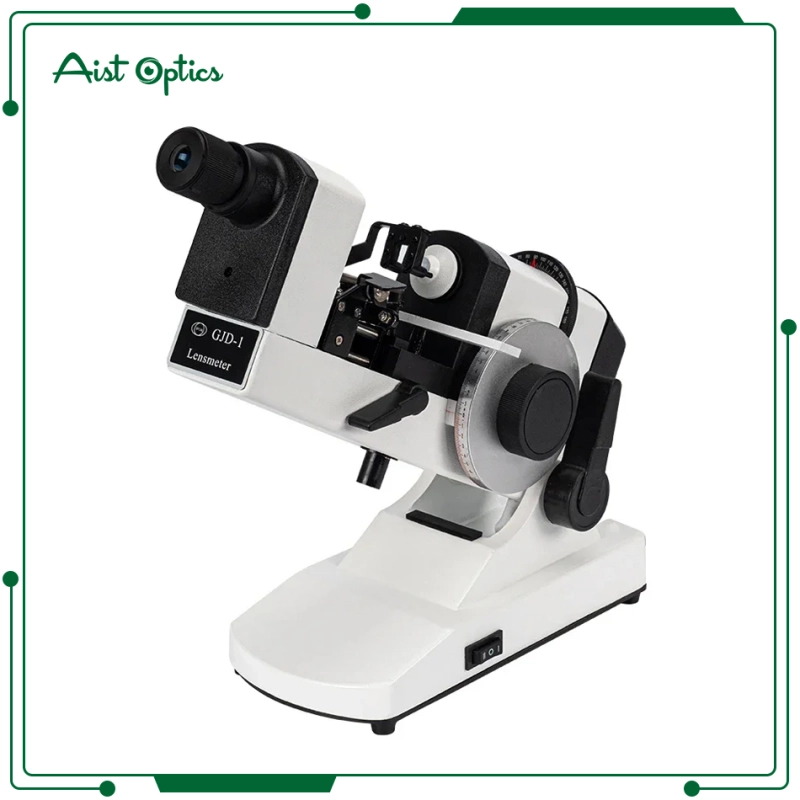

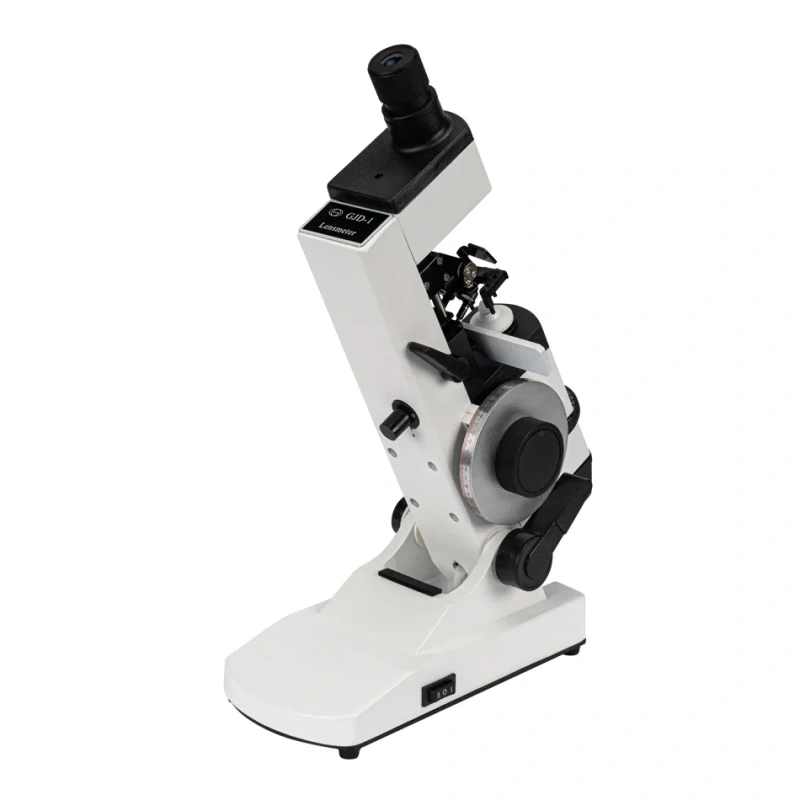

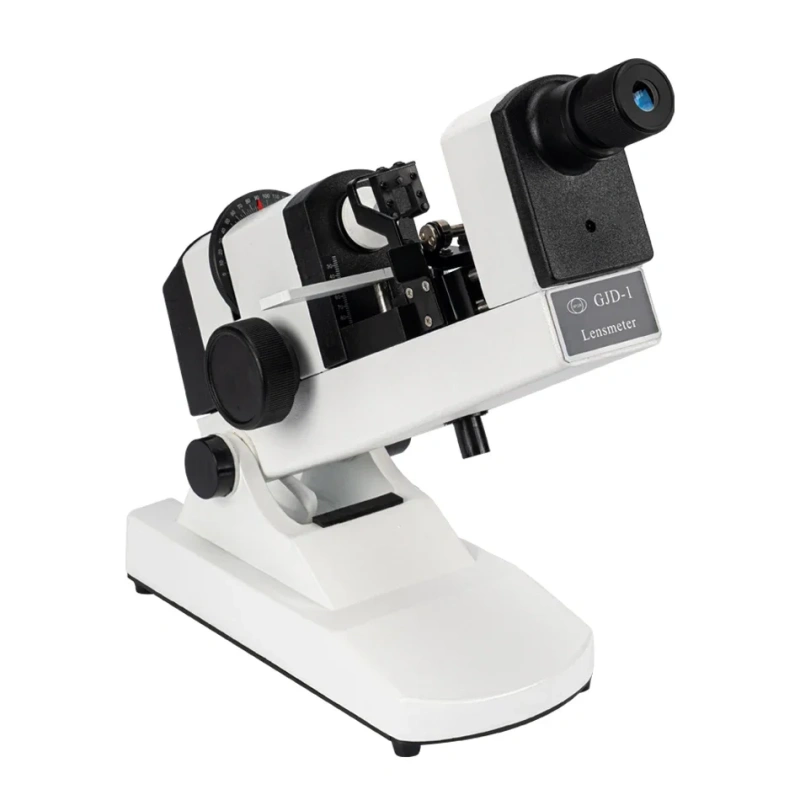

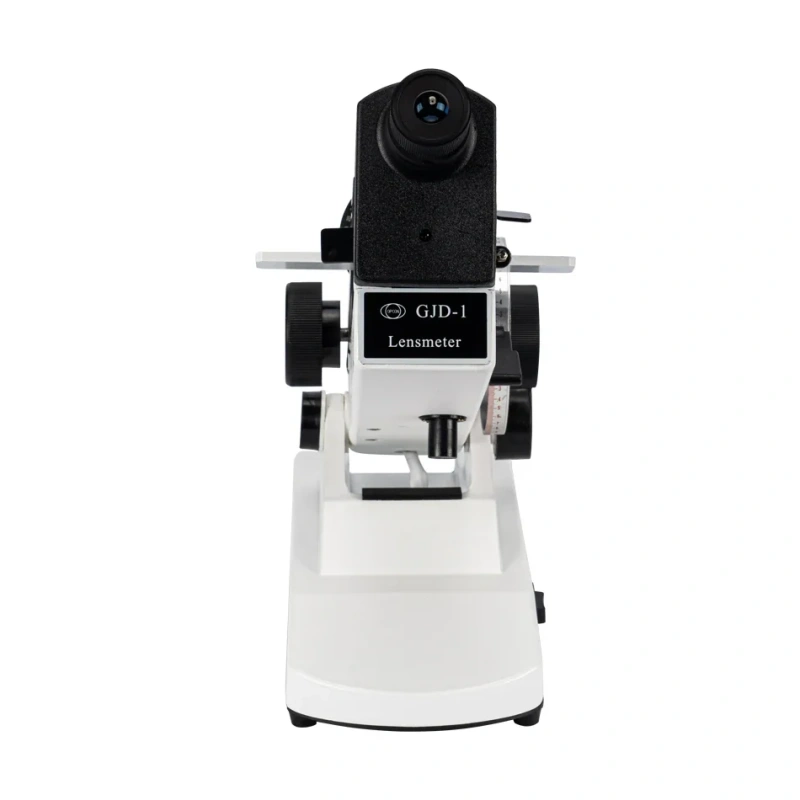

GJD-1 Manual Lensmeter

Name: GJD-1 Manual Lensmeter
Brand: Aist Optics Store
Price: 170 USD
Availability: InStock
Rating: 5.0 (16 reviews)

5.0 (16 Reviews)

60 Sold

$170.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity

0 in stock

Add to Favorites (18)

1/1

Description

Features

Economical basic portable lensometer
The minimum measurement grid: 0.125D
This portable lensometer is external reading type
The prism compensation is optional.
It's easy to operate, convenient in use and full in function.
Eyepiece
A spiral focusing eyepiece, which focusing range is ± 5D. Easy to adjust for all operators.

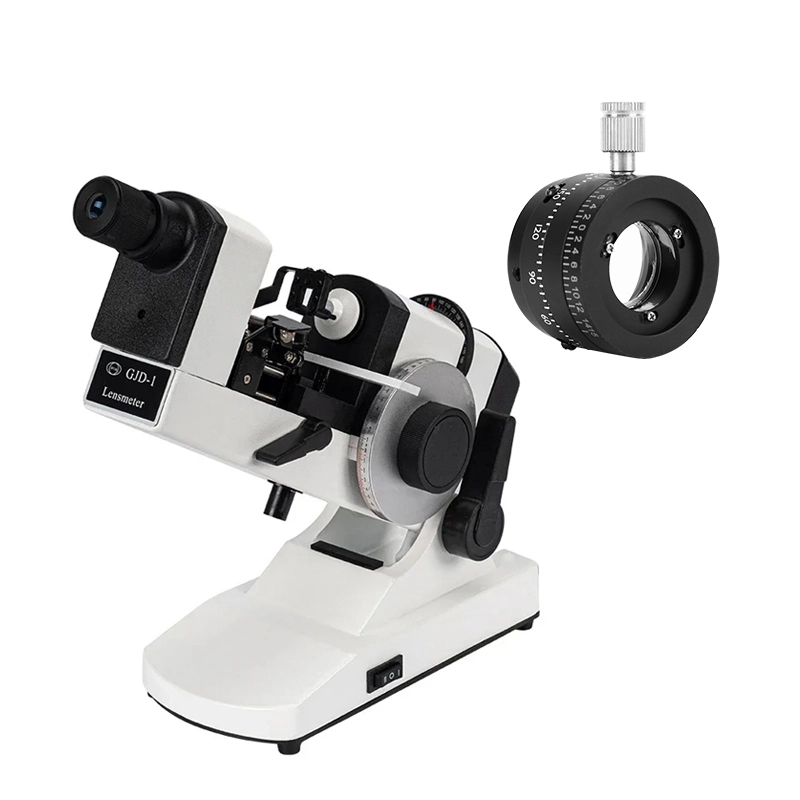

Prism Compensation (optional)
It is used to compensate the measuring arrange of prism. The prism measurement range is increased from 0cm/m ~ 5cm/m to 0cm/m ~ 20cm/mm.

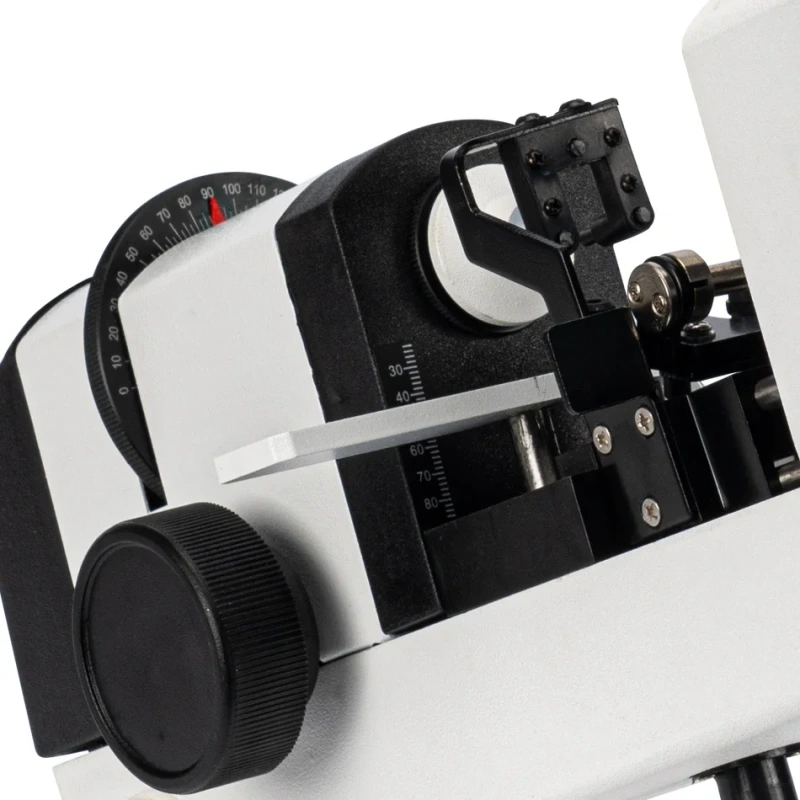

Marking Pens
The unit has 3 ink feeding marking pens, connected in line. The pen in the middle is used to set lens center and the connected line of marking points made by 3 pens are used to demarcate angle of astigmatism axis and base angle of prism lens. When operator need to mark on the surface of the lens, turn and push marking lever, then mark ink points on the lens quickly.

Ranges of Measurement	0 to ±25D
Minimum	Outer Reading:0.125D
Minimum	Inner Reading:0.125D graduation up 0 to ±5D and 0.25D graduations over±5D to±25D
Cylinder Axis Range	0-180° step 1°
Primatic Power Range	0-5 prism diopters, graduations
Primatic Power Range	with prism compensation device 0~20 prism diopters, 1 graduations
Prism Base Angle	0~180°
Eyepiece Adjustment	±5D
Dimension of Objective Lens	Φ16~Φ86mm
Overall size	220×120×430mm
Weight	3.9kg
Lighting Bulb	~220V/-3V 3W or ~110V/-3V 3W
