3D tracking and auto focus
Just rotate to any position, it will automatically focus the eye and get the value
Refractive measurement with hexagon prism
With high quality of hexagon prism and highly sensitive CCD , it provides unmatched accuracy and reliability

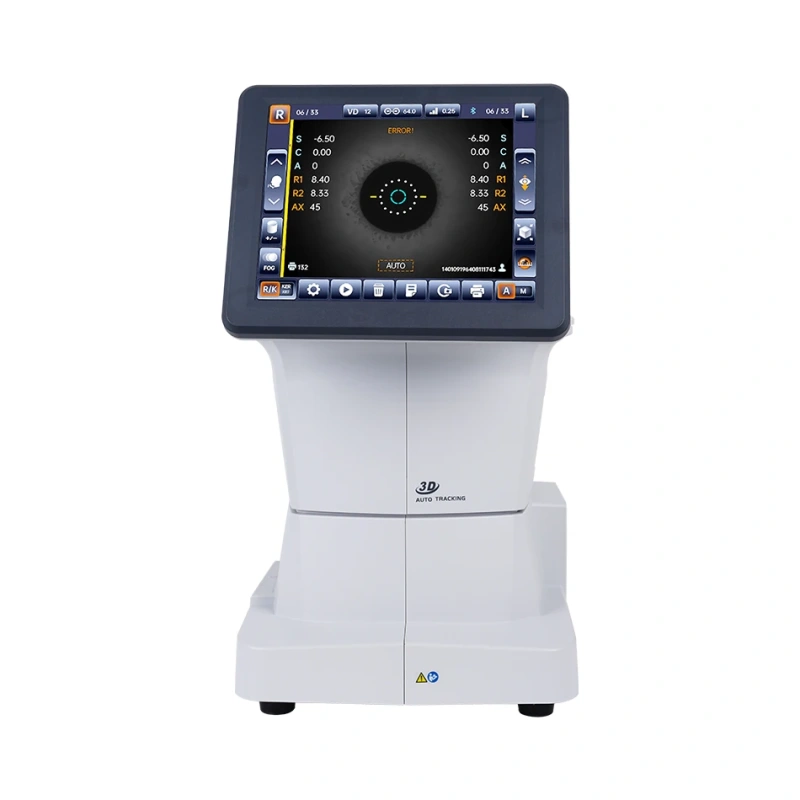

10.4 " tilt and swivel monitor
Since the screen can be continuously tilted and swiveled , it can be placed anywhere in an examination area. Flexible layout and space saving design contribute to improved productivity and efficiency

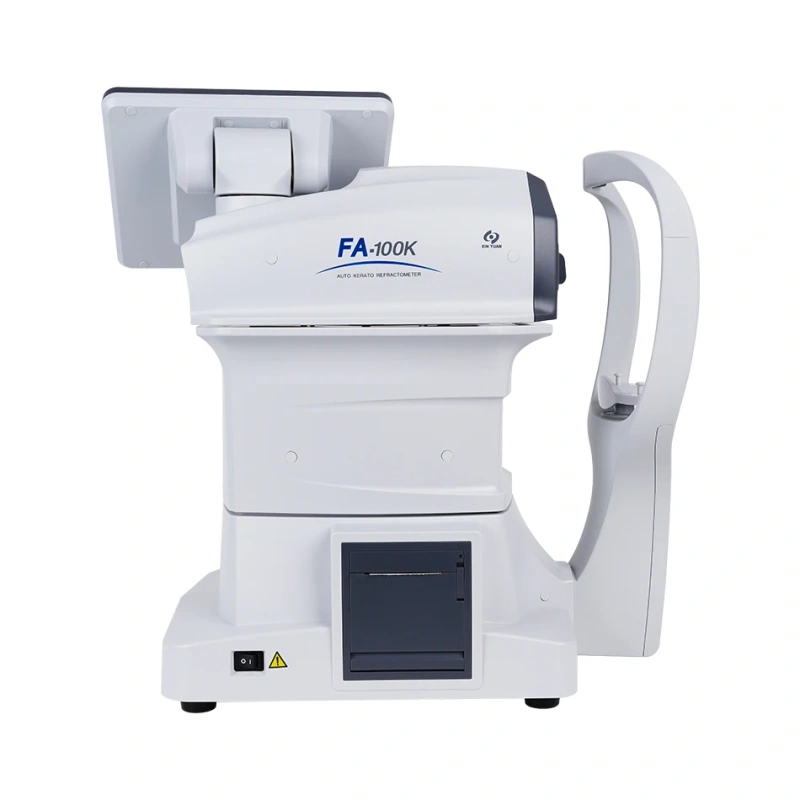

Built-in thermal printer
Automatic printing and paper cutting
|
Refractometer
|
|
Vertex distance
|
0mm, 12mm, 13.75mm, 15mm
|
|
Spherical
|
-25~+20m (VD=12) 0.12/0.25m Step
|
|
Cylinder
|
-8~+8m 0.12/0.25m Step
|
|
Axis
|
0~180° 1° Step
|
|
Cylinder form
|
-,+,±
|
|
Pupil distance
|
5~90mm,1mm Step
|
|
Min. pupil size
|
2.0mm
|
|
Keratometry
|
|
Radius of curvature
|
5.0~10mm(increment: 0.01mm)
|
|
Corneal power
|
33.75~67.50m"(when corner equivalent refractive index is 1.337)
(increment selectable from 0.12, 0.25m)
|
|
Corneal astigmatism
|
0.0~8.00m(increment selectable from 0.120.25m)
|
|
Axis
|
1-180°(increment:1°)
|
|
Corneal diameter
|
2.0~15.0mm(increment:1mm)
|
|
Others
|
|
Chart
|
Follow-up colorful fogging chart system
|
|
Memory of data
|
10 measure value for each right and left eye
|
|
Display
|
10.4"LCD/TFT
|
|
Print
|
57mm thermal printer
|
|
Power supply
|
100-240V 50Hz 60VA
|
|
Serial Interface
|
USB,RS-232C,blue tooth,WIFI,4G
|
|
Dimension
|
445mm(W)x287mm(D)x490mm(H)
|
|
Weight
|
20kg
|
